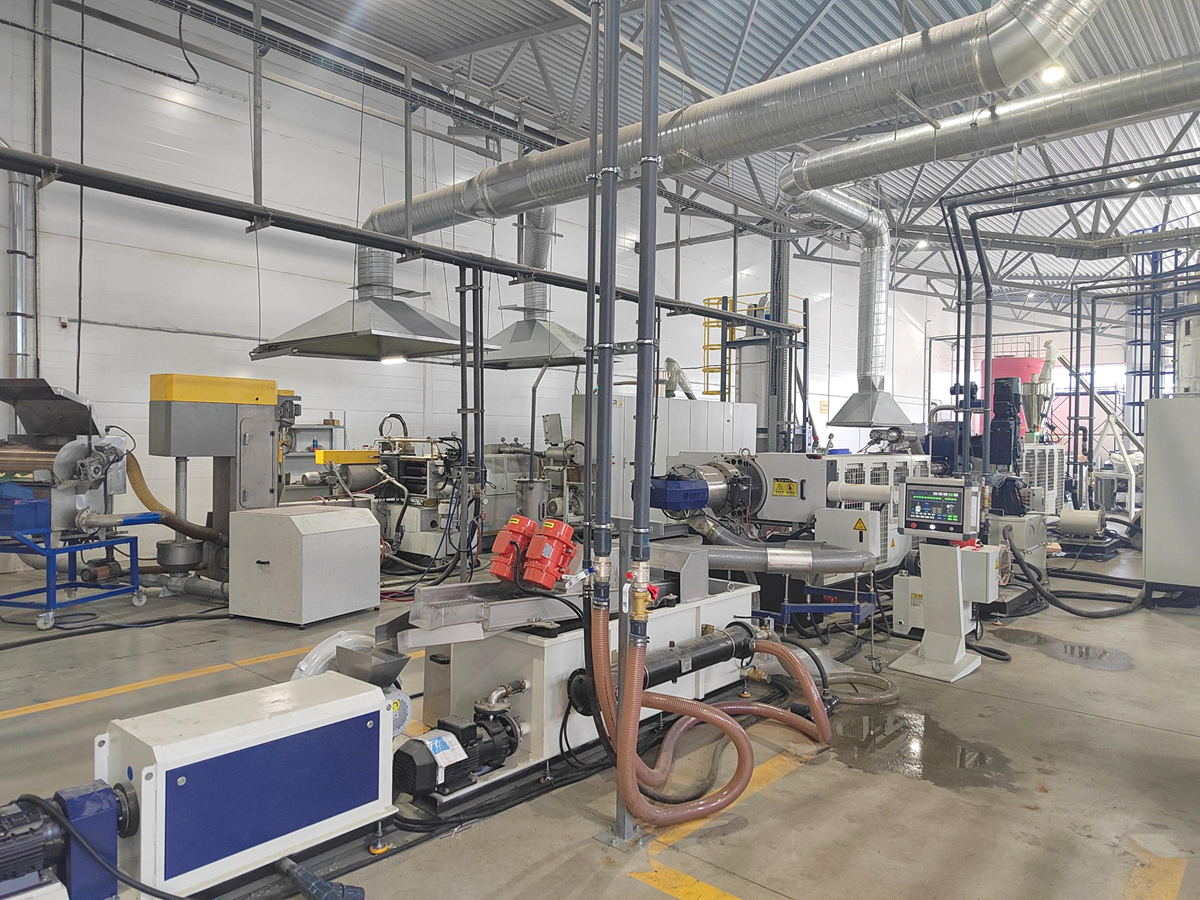

Kitech Machinery is pleased to announce the successful commissioning of our KSP100-120 double stage pelletizing line at a Russian manufacturing facility. Following comprehensive debugged by our overseas technical team, the system has demonstrated outstanding operational performance during trial runs. Plant operators quickly mastered the intuitive control system, while the client expressed strong satisfaction with the quality of the final PP pellets.
I. Advanced Solution for Rigid Plastic Recycling
Engineered specifically for processing rigid plastic scraps including PP, PE, ABS, PS, HIPS, and PC, the KSP series integrates material feeding, plasticization, filtration, pelletizing, and drying into a single streamlined system.
1. High-capacity drying silo & screw feeder

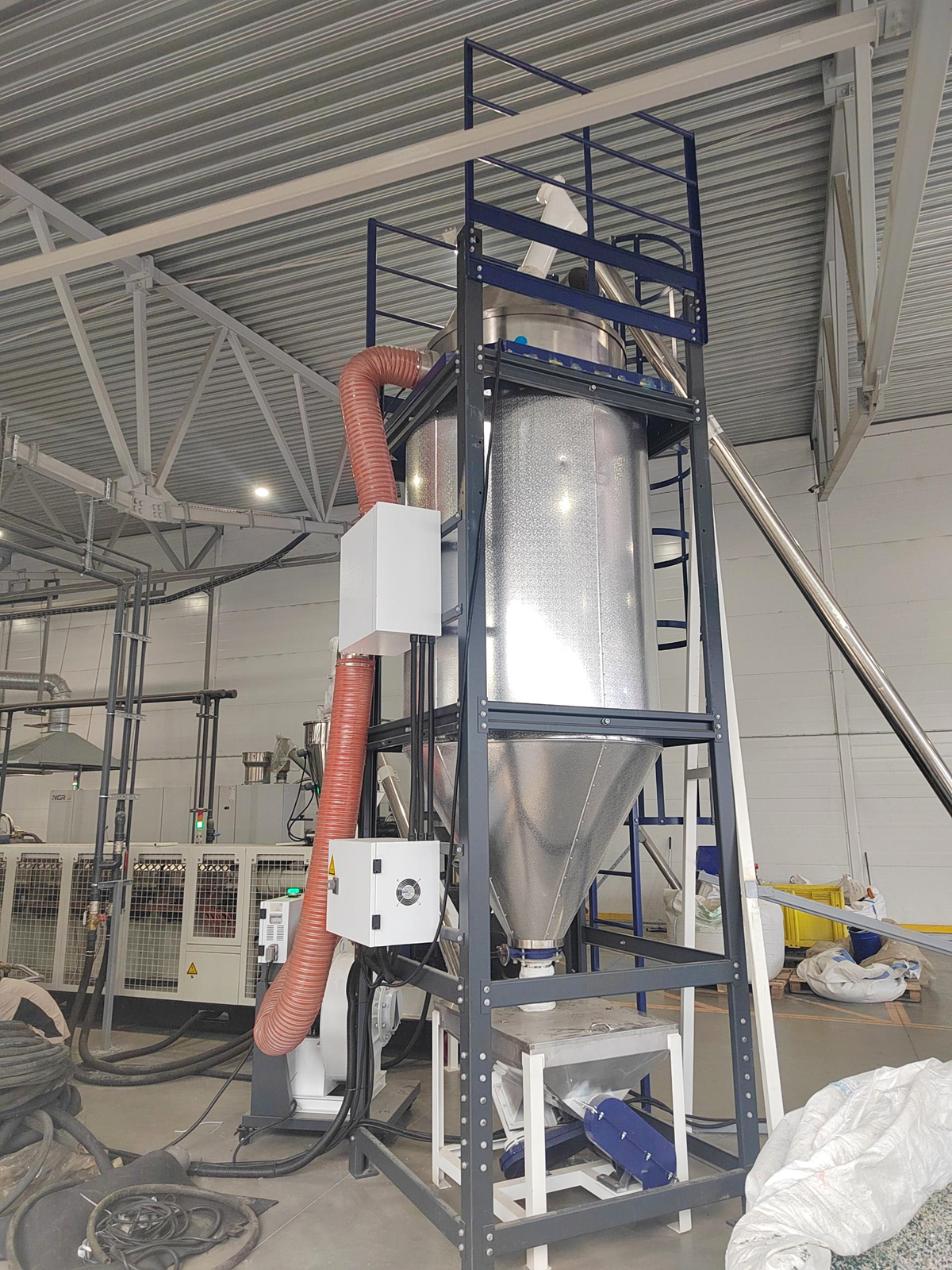

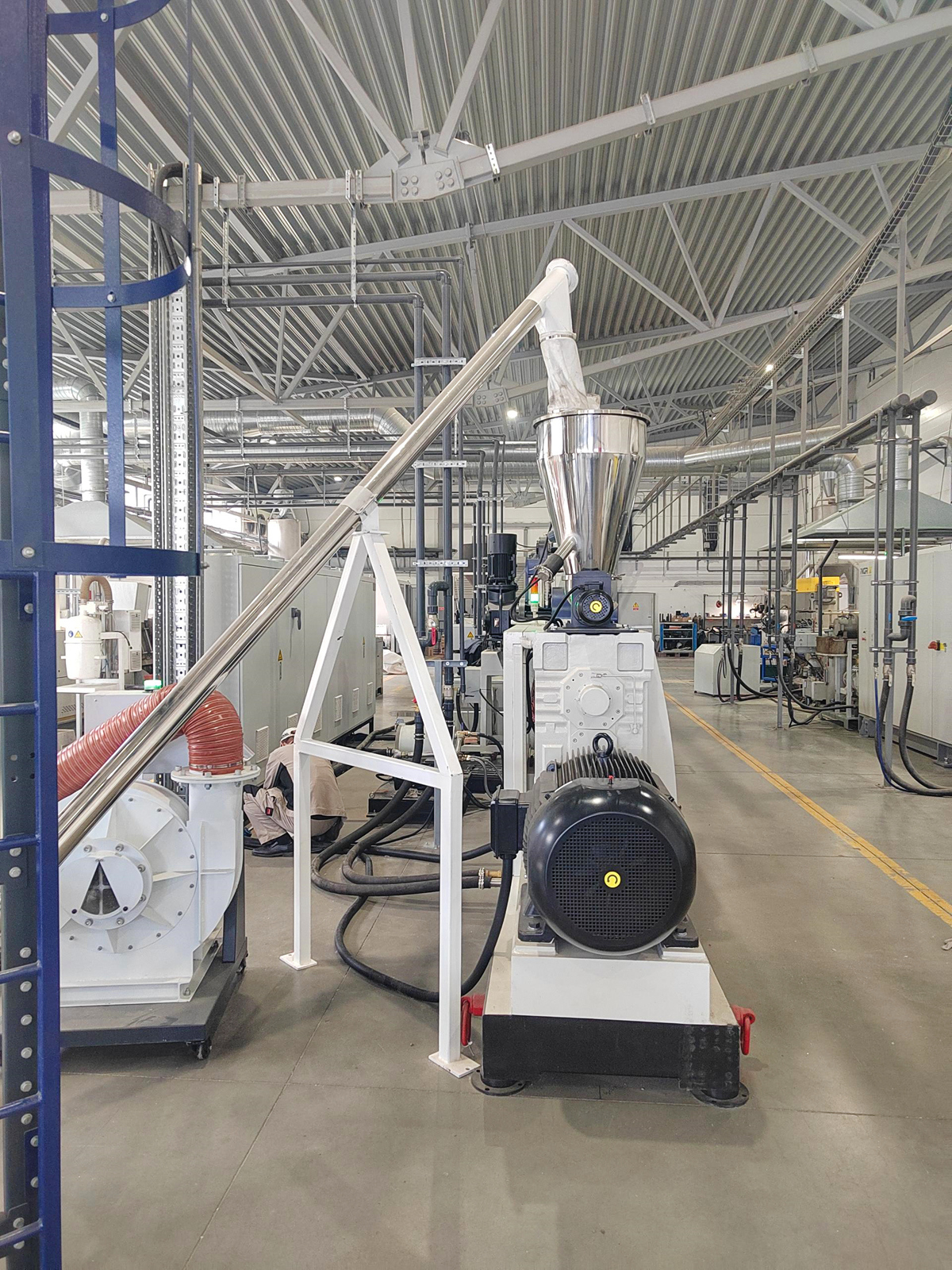

The process begins with Kitech Machinery large-volume drying hopper, designed to dry out moisture in the raw material. A variable-speed screw conveyor then transfers dried material (<14mm) to the extrusion system, with both feed rate and capacity fully customizable.
2.Kitech Machinery Optimized Extrusion Unit

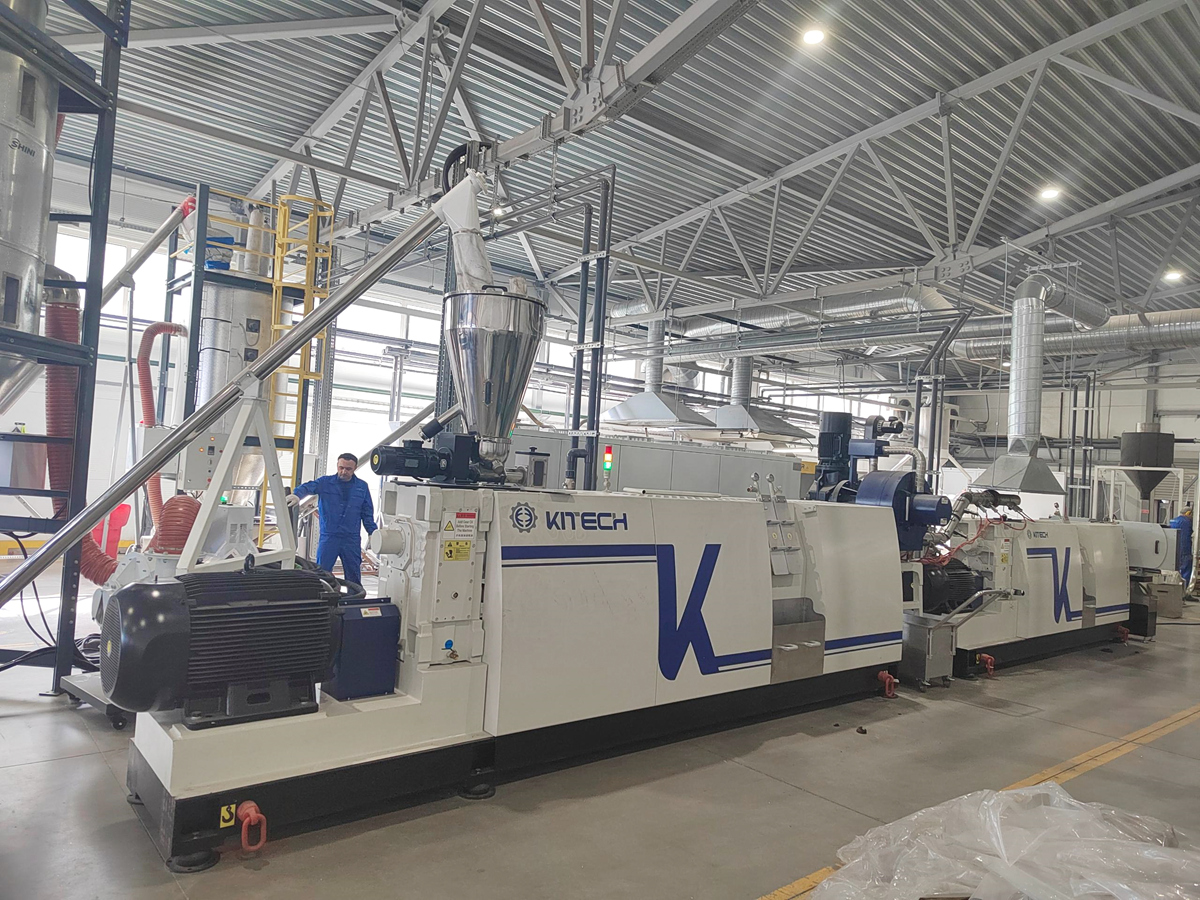

The heart of the system features a double-screw extruder with degassing vent design, ensuring superior plasticization and high pellet output. Its extended service life comes from specialized bimetal alloy construction in the screw and barrel components.
3.Innovative Filtration Technology
The centerpiece of the system - Kitech Machinery self-cleaning laser filtration module - features a hardened steel filter screen with precision laser-drilled micro-pores (80-800μm). Its continuous cleaning mechanism utilizes six scraper blades and a dedicated discharge screw to maintain consistent throughput with highly contaminated materials. This eliminates manual screen changes while minimizing melt loss during operation.
Complementing this is our plate-type backup filter with single-cartridge dual-position design, ceramic heating bands for precise thermal control, and GEFRAN® pressure sensors that automatically alert operators when screen replacement is needed. The integrated lift-ring mechanism ensures simplified maintenance access.
4.Kitech Machinery Precision Pelletizing & Drying

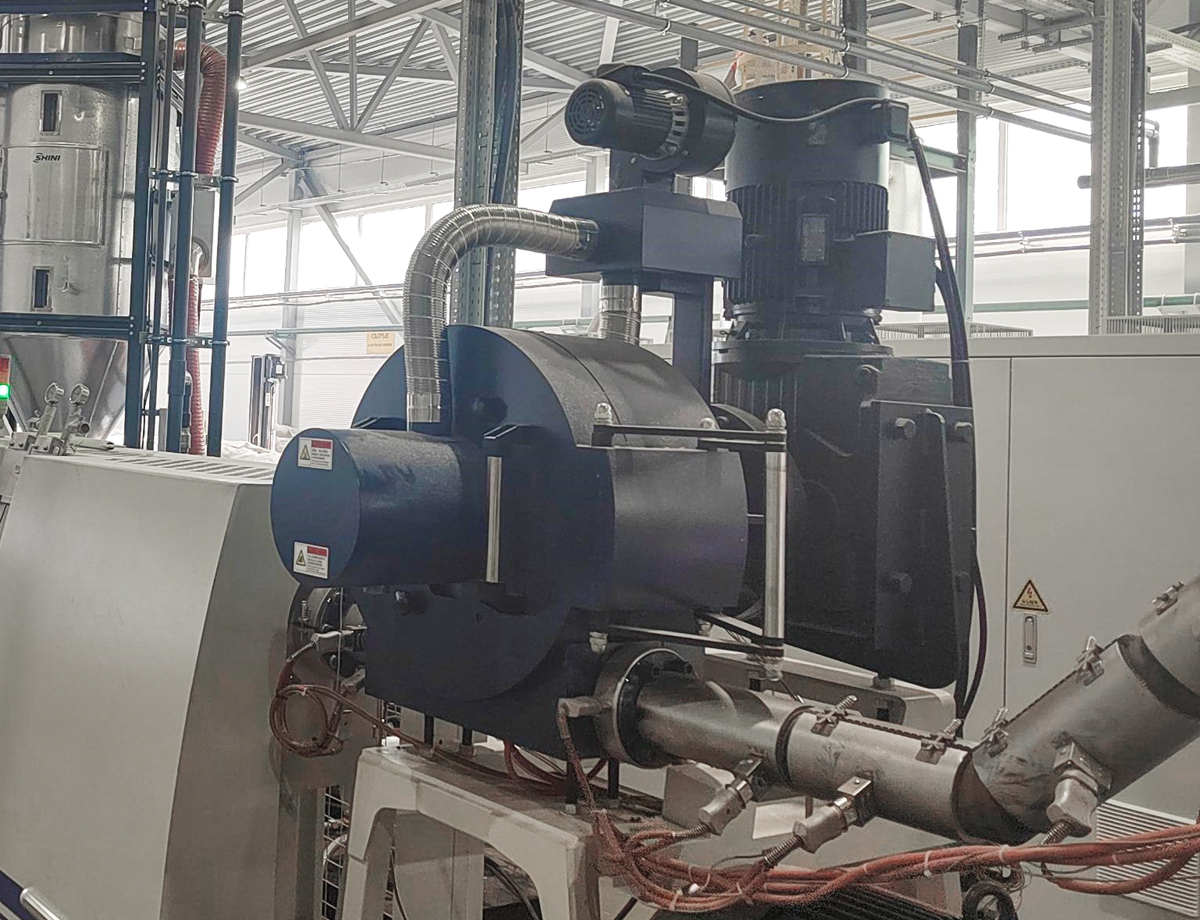

Downstream processing incorporates a European-designed water-ring pelletizer with PLC-controlled variable-speed operation, synchronized with melt pressure to produce uniform pellets. The subsequent two-stage drying system combines vibratory and centrifugal technologies within a closed-loop water circuit featuring heat exchange cooling, ensuring optimal moisture content in final pellets.
5.Intelligent Control System

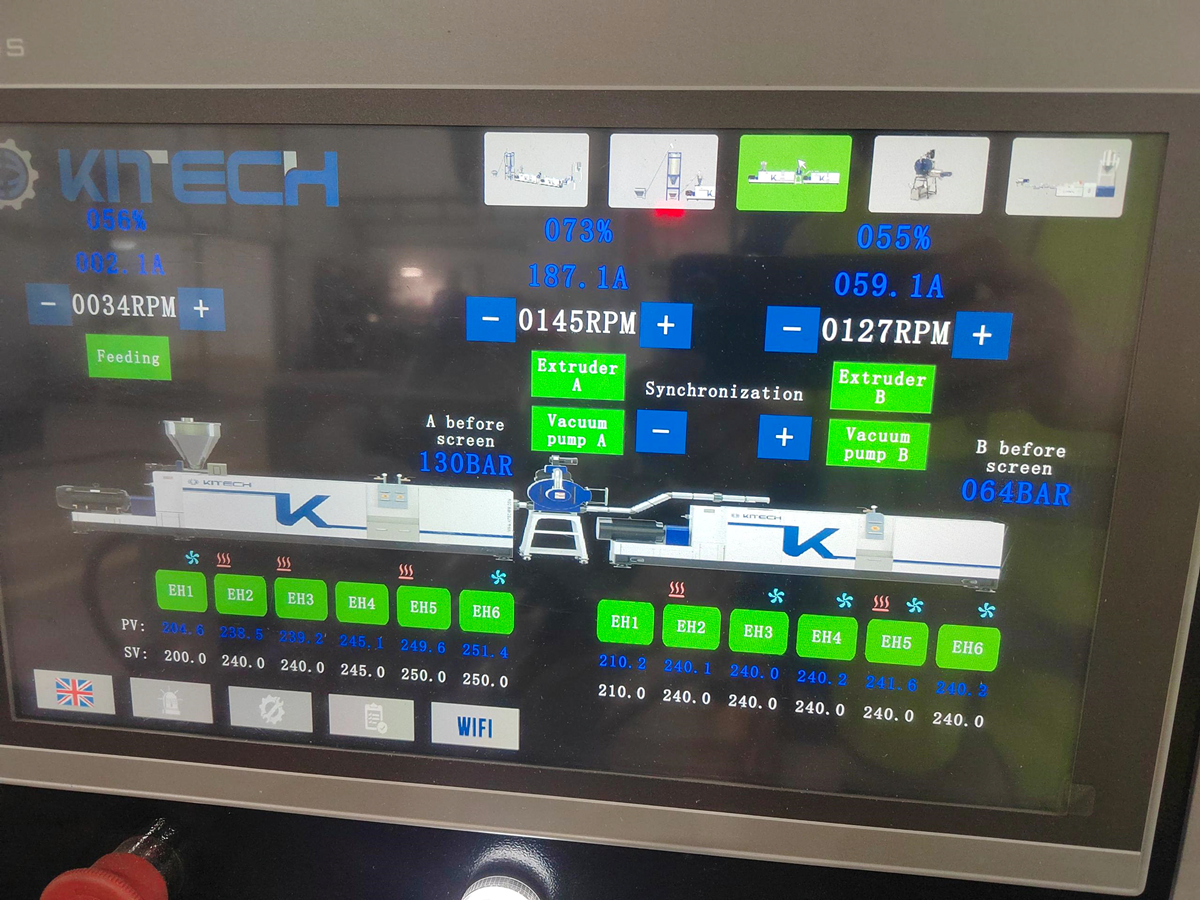

The entire production line is managed through an integrated PLC system with touchscreen HMI interface, enabling streamlined operation with minimal staffing requirements while providing comprehensive process monitoring.
II. Kitech Machinery Operational Advantages
Reduced Labor: Self-cleaning filtration eliminates manual interventions
Continuous Production: Stable operation with high-contamination materials
Resource Efficiency: Water recycling system minimizes consumption

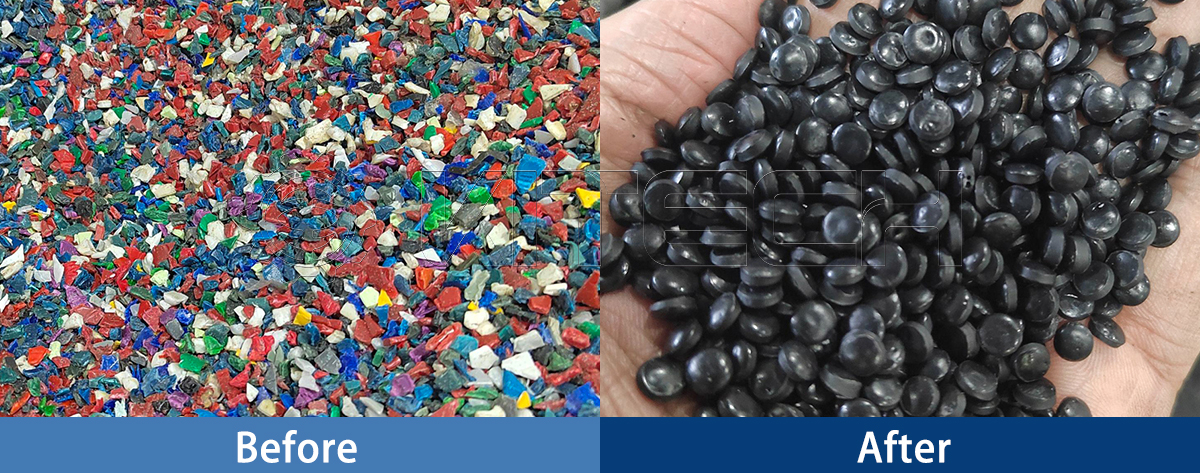

Consistent Quality: Uniform pellet geometry and purity
Low Maintenance: Robust construction with accessible components
III. Client Validation
"Operational simplicity combined with the laser filter's autonomous performance exceeded our expectations. We achieved production-grade pellets within hours of commissioning," confirmed the Russian plant manager.
Kitech Machinery has professional technical team and advanced production technology. We will always be committed to producing cost-effective and high-quality plastic recycling machinery, helping global customers achieve green production. We will continue to contribute to the world's ecological environment and provide customers with higher quality products and services.
